Pipe Inspection Camera with DVR Control Box 98.4 Wire

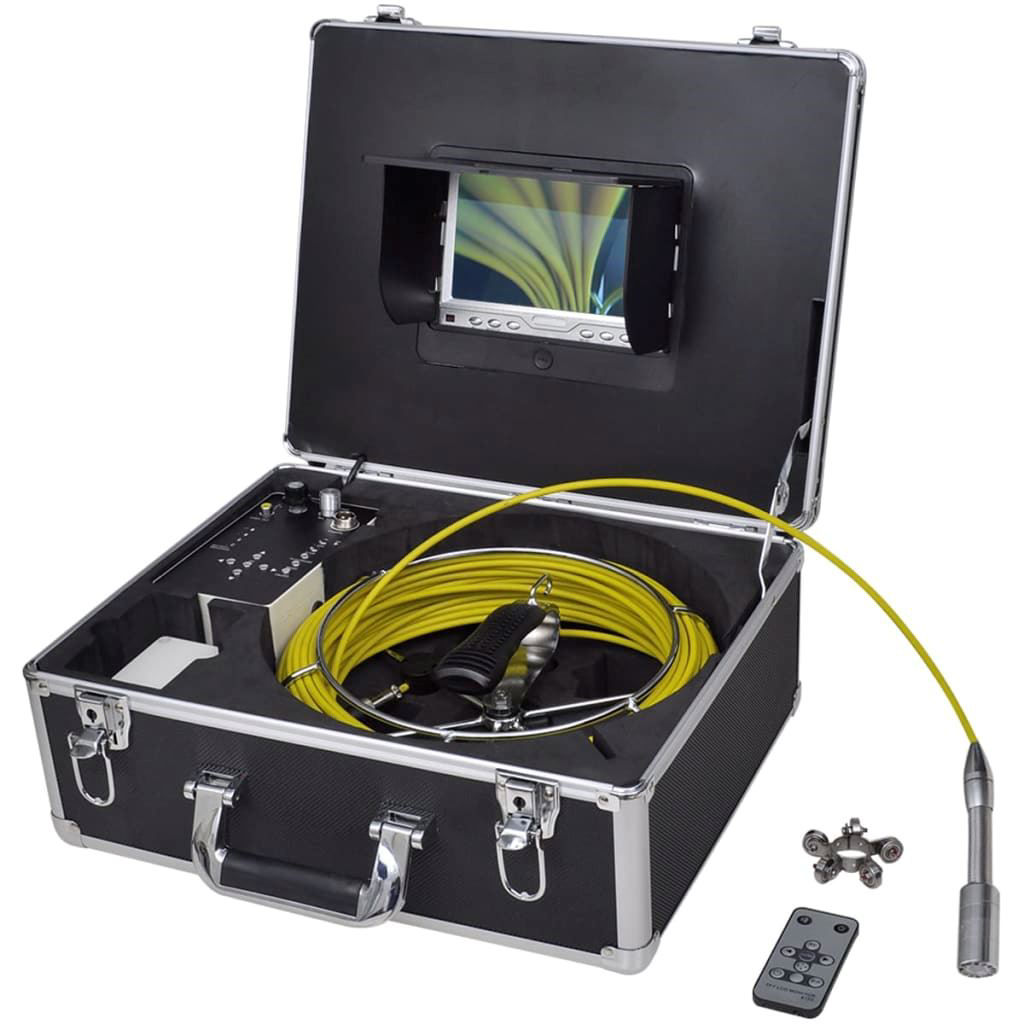

This is a professional video camera system with a waterproof camera, connected with a fiberglass wire, used for sewer pipe inspection as well as the inspection of other hard-to-reach areas.

Connecting the camera to the cable reel, you can reach the desired depth or distance by reeling out the wire. The attached roller skid will protect the camera from serious damage and will move the camera along smoothly. The image will be displayed on the color monitor with menu button/remote control to adjust the image and view. The camera also has built-in LEDs that make inspection in complete darkness possible.

You can also record video or sound with the DVR control box and transfer the image/video onto your PC. The bright color monitor also has a sun visor to ensure a better view with less reflection. This unit can be easily transported in the included carrying case.

  • Monitor specifications:
  • Screen size: 7" color monitor
  • Monitor total pixels: 800 x 480 (H x V)
  • Monitor power supply: 12 V⎓
  • Model: 16:9
  • With built-in sun visor
  • Operating temperature: -4 °F~+140 °F
  • Battery charger: Input: 110-240 V~, output: 12 V⎓
  • Rechargeable battery: li-ion battery, 12 V
  • Camera specifications:
  • Camera size: 0.9" x 7.3" (W x L)
  • Camera case material: Stainless steel 304
  • Camera glass material: Sapphire glass
  • Sensor size: 1/3" CMOS
  • Total Pixels: HD 960 TVL
  • Lens focus: 0.142"
  • View angle: 75°
  • Camera LED lights: 8 white LEDs
  • With gold-plated connector
  • Camera work current: 100 MA
  • Camera power supply: 12 V⎓
  • Ingression protection rating: IP68 (waterproof)
  • Operating temperature: 14~122 °F

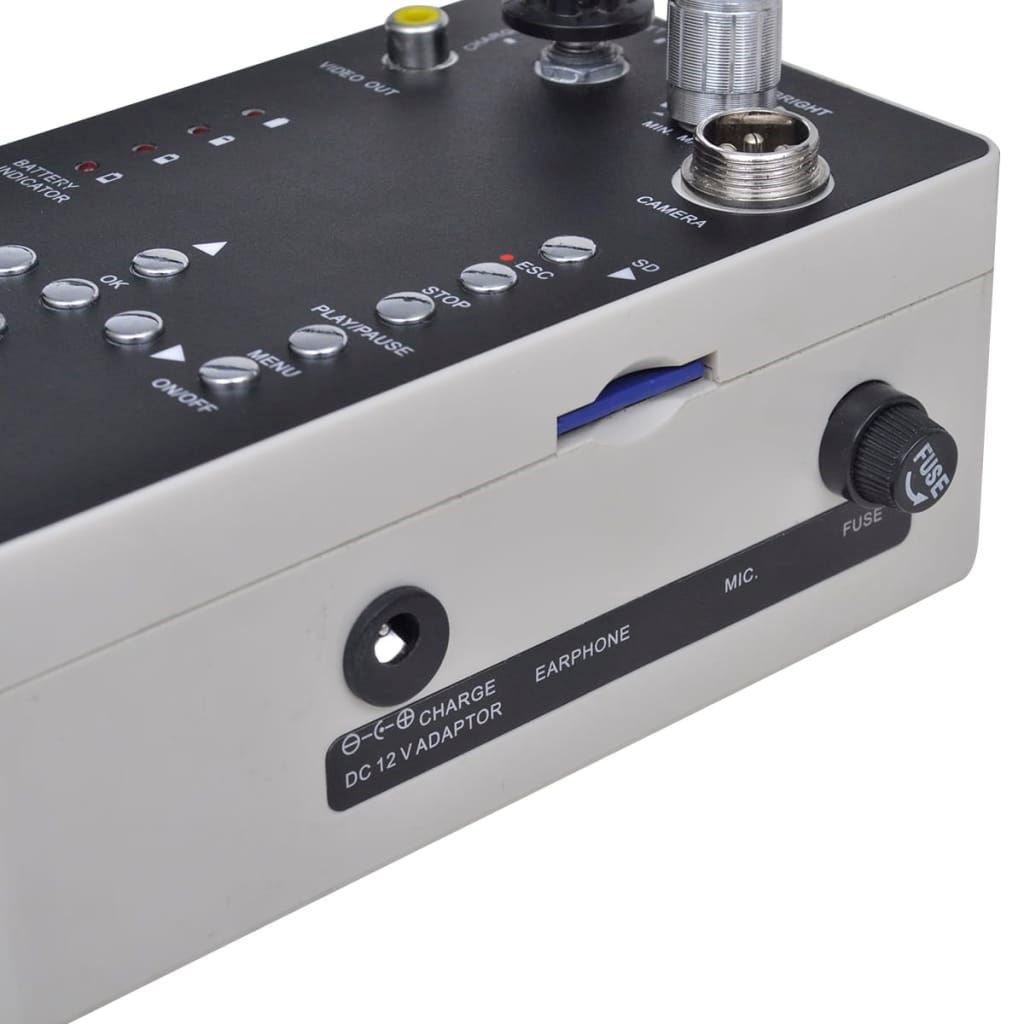

  • DVR control box specifications:
  • DVR power supply: 12 V⎓
  • DVR work current: 200 MA
  • Storage medium: SD card (Max. 16G)
  • DVR total pixels: 720 x 576 (H x V)
  • Movie format: AV
  • With still image and movie capture
  • Cable wheel specifications:
  • Cable size: 11.8" x 4.3" (Diameter x H)
  • Wire material: Fiberglass
  • Wire length: 98.4'
  • Wire diameter: 0.19"
  • Wire color: Yellow
  • Delivery includes:
  • 1 x Camera
  • 1 x 7" LCD monitor
  • 1 x Connection cord
  • 1 x Cable reel
  • 1 x Remote control
  • 1 x Rechargeable battery
  • 1 x Battery charger
  • 1 x DVR Control box
  • 1 x Aluminum case
  • 2 x Key
  • 1 x Roller skid
